SAJ Inverters

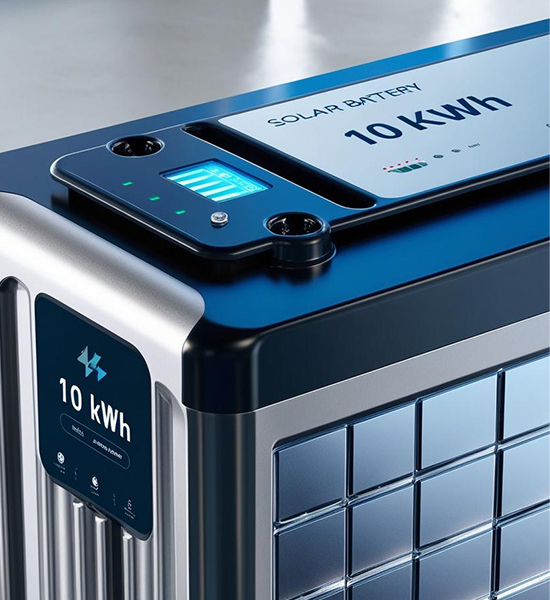

High Energy Capacity: The SMILE-G3-BAT-10.1P boasts a maximum energy capacity of 10.1 kilowatt-hours (kWh), ensuring there is enough energy stored to supply your home during low solar generation or when the grid goes down.

Lithium Iron Phosphate (LiFePO4) Chemistry: The battery is constructed with LiFePO4 chemistry, recognized for its long cycle life, high safety, and stability. LiFePO4 batteries are regarded as a solid and long-lasting option for residential energy storage solutions.

All-in-One Design: The SMILE-G3-BAT-10.1P is a single-box, all-in-one energy storage solution that integrates the battery, inverter, and energy management system in one device. This design makes it easier to install, minimizes system footprint, and guarantees smooth operation.

Backup Power Capability: The battery system can be used as a source of backup power in case of a power outage, keeping essential loads within your home powered. This capability guarantees uninterruptible power supply and increases energy reliability and resiliency.

Time-of-Use (TOU) Optimization: The battery can be set up to maximize energy utilization according to time-of-use tariff structures. You can save this excess solar energy during the off-peak hours when electricity prices are low and utilize it during peak hours, thus achieving maximum savings of energy.

Remote Monitoring and Control: The Alpha Cloud platform allows remote monitoring and control of the energy storage system. Users can view real-time information, track energy generation and consumption, and control the system remotely through an easy-to-use interface.

Warrant: 5Years product warranty, 10 years of performance warranty.

The SAJ H2 Series Single-Phase Inverter is a high-efficiency residential and small commercial solar inverter. It has a maximum efficiency of 97.6% with up to 200% DC oversizing support, enabling flexible system design. With three MPPT trackers, it maximizes energy harvesting from solar panels. The inverter is compatible with ultra-high-power PV modules with a maximum DC input current of 16A per string.

One of its most notable features is its UPS function, providing smooth backup with a switch time of ≤10ms. It also has battery storage capability using LiFePO4 batteries, with a voltage range of 85V to 450V and a maximum charge/discharge current of 50A. The inverter comes equipped with necessary safety features like anti-islanding protection, AC/DC surge protection, and an optional AFCI for arc fault detection.

For connectivity, the H2 series supports Wi-Fi, Ethernet, and optional 4G for remote monitoring through a mobile app and LED display. Its natural convection cooling maintains quiet operation with a noise level of <35dBA. The strong IP65 rating keeps it safe from dust and water, making it ideal for outdoor installation.

The inverter has a high operating temperature range of -40°C to +60°C with power derating over 45°C. It is compliant with key international safety and grid standards such as AS4777.2, IEC62109-1 & -2, and EN50549. It has flexible warranty arrangements of 5, 10, 15, or 20 years for long-term dependability.

The SAJ H2 Series Three-Phase Hybrid Inverter is a high-efficiency solar inverter that can be used for both grid-connected and energy storage applications. Its maximum efficiency of 98.0% and 97.6% Euro efficiency enables maximum power conversion. The inverter can handle high DC input capacities with 15A string capacity and MPPT voltage range of 180V – 900V, having ultra-high PV module compatibility.

This inverter has UPS functionality, providing seamless switching over in ≤10ms to provide an uninterruptible power supply. It supports 110% overloading of AC and 150% – 200% oversizing of DC to provide maximum power input flexibility. For power storage, it is compatible with LiFePO4 batteries with a voltage range of 180V – 600V and a maximum charging/discharging current of 30A.

The SAJ H2 Series provides smart working modes that can be easily programmed, as well as 100% three-phase voltage imbalance support for stable performance under different grid conditions. It features advanced protection functions like reverse polarity, overload, AC and DC surge protection, and optional AFCI (Arc Fault Circuit Interruption) for extra safety.

For monitoring and connectivity, the inverter has LED + APP control with support for WiFi, Ethernet, and optional 4G communications. It is designed to last with IP65 ingress protection, natural convection cooling, and an operating temperature range of -25°C to +60°C (with derating above 45°C). The unit runs quietly at less than 30 dBA noise levels and has a rating for altitudes up to 4000m.

The SAJ H2 Series comes with warranty choices of 5, 10, 15, or 20 years and is a highly reliable, high-performance, and future-proof hybrid inverter solution for residential and commercial purposes.
